How to Review Langfuse Traces with Label Studio

0. Label Studio Requirements

This tutorial uses ReactCode templates, a feature available in Label Studio Enterprise only. ReactCode allows you to build fully custom React-based annotation interfaces — in this case, a 3-panel trace review UI. We recommend connecting with our team to request a trial or to enable them in your account.

After section 2, you will need a running Label Studio Enterprise instance and an API key from your account settings.

1. Installation & Setup

First, install the required dependencies:

!pip -q install requests label-studio-sdk python-dotenv langfuse langchain langchain-anthropic anthropic langgraph

Environment Configuration

Create a .env file in the repository root (or the same directory as this notebook) with the following variables:

# Label Studio Enterprise
LABEL_STUDIO_HOST=http://localhost:8080       # or your LS Enterprise instance URL
LABEL_STUDIO_API_KEY=your_label_studio_api_key

# Langfuse
LANGFUSE_BASE_URL=https://cloud.langfuse.com  # or your self-hosted Langfuse URL
LANGFUSE_PUBLIC_KEY=your_langfuse_public_key
LANGFUSE_SECRET_KEY=your_langfuse_secret_key
LANGFUSE_PROJECT=your_project_name            # project name (for display in Label Studio)

# Anthropic (only needed for Section 3a sample trace generation)
ANTHROPIC_API_KEY=your_anthropic_api_key

Note: Langfuse API keys (public + secret key pair) are already scoped to a specific project, so LANGFUSE_PROJECT is used as a display name only — no project ID resolution needed.

Langfuse Setup: Visit Langfuse Documentation to create an account, generate an API key pair, and note your project’s base URL.

Label Studio Setup: Visit Label Studio Documentation for installation instructions and how to generate an API token from your account settings.

import os
from dotenv import load_dotenv

load_dotenv(override=True)
load_dotenv(os.path.join(os.path.dirname(os.getcwd()), '.env'), override=True)

# Label Studio Enterprise
LABEL_STUDIO_HOST = os.getenv('LABEL_STUDIO_HOST', 'http://localhost:8080')
LABEL_STUDIO_API_KEY = os.getenv('LABEL_STUDIO_API_KEY', '')

# Langfuse
LANGFUSE_BASE_URL = os.getenv('LANGFUSE_BASE_URL', 'https://cloud.langfuse.com')
LANGFUSE_PUBLIC_KEY = os.getenv('LANGFUSE_PUBLIC_KEY', '')
LANGFUSE_SECRET_KEY = os.getenv('LANGFUSE_SECRET_KEY', '')
LANGFUSE_PROJECT = os.getenv('LANGFUSE_PROJECT', '')

# Anthropic (only needed for sample trace generation in Section 3a)
ANTHROPIC_API_KEY = os.getenv('ANTHROPIC_API_KEY', '')

print('LABEL_STUDIO_HOST:', LABEL_STUDIO_HOST)
print('LANGFUSE_BASE_URL:', LANGFUSE_BASE_URL)
print('LANGFUSE_PROJECT:', LANGFUSE_PROJECT or '(not set — will fetch all traces)')
print('Has LABEL_STUDIO_API_KEY?', bool(LABEL_STUDIO_API_KEY))
print('Has LANGFUSE keys?', bool(LANGFUSE_PUBLIC_KEY and LANGFUSE_SECRET_KEY))
print('Has ANTHROPIC_API_KEY?', bool(ANTHROPIC_API_KEY))

Setup: The Evaluation Pipeline

This tutorial connects Langfuse’s engineering-centric observability tooling with Label Studio’s expert evaluation interface:

Step 1: Trace Collection in Langfuse

• Langfuse captures LLM traces as typed observations (GENERATION, TOOL, SPAN, CHAIN)
• Engineer-centric interface for debugging, scoring, and iteration
• Project-scoped API keys make authentication straightforward — no project ID lookup needed

Step 2: Expert Evaluation in Label Studio

• Import traces from Langfuse into Label Studio as structured annotation tasks
• Domain experts evaluate each turn using the custom ReactCode UI
• Collaborative workflow: multiple SMEs can annotate the same traces
• Structured output feeds directly into quality reports, prompt improvements, and LLM-as-a-judge pipelines

2. Label Studio ReactCode Config

Skip the setup — clone the project directly

The pre-configured project below includes the full 3-panel ReactCode annotation interface ready to use. Click the button to clone it into your Label Studio Enterprise account and jump straight to importing your Langfuse traces in Section 4.

Open in Label Studio

If you prefer to configure the project programmatically, follow the rest of this section.

This tutorial uses a ReactCode label configuration — a Label Studio Enterprise feature that lets you embed a custom React component as your annotation interface.

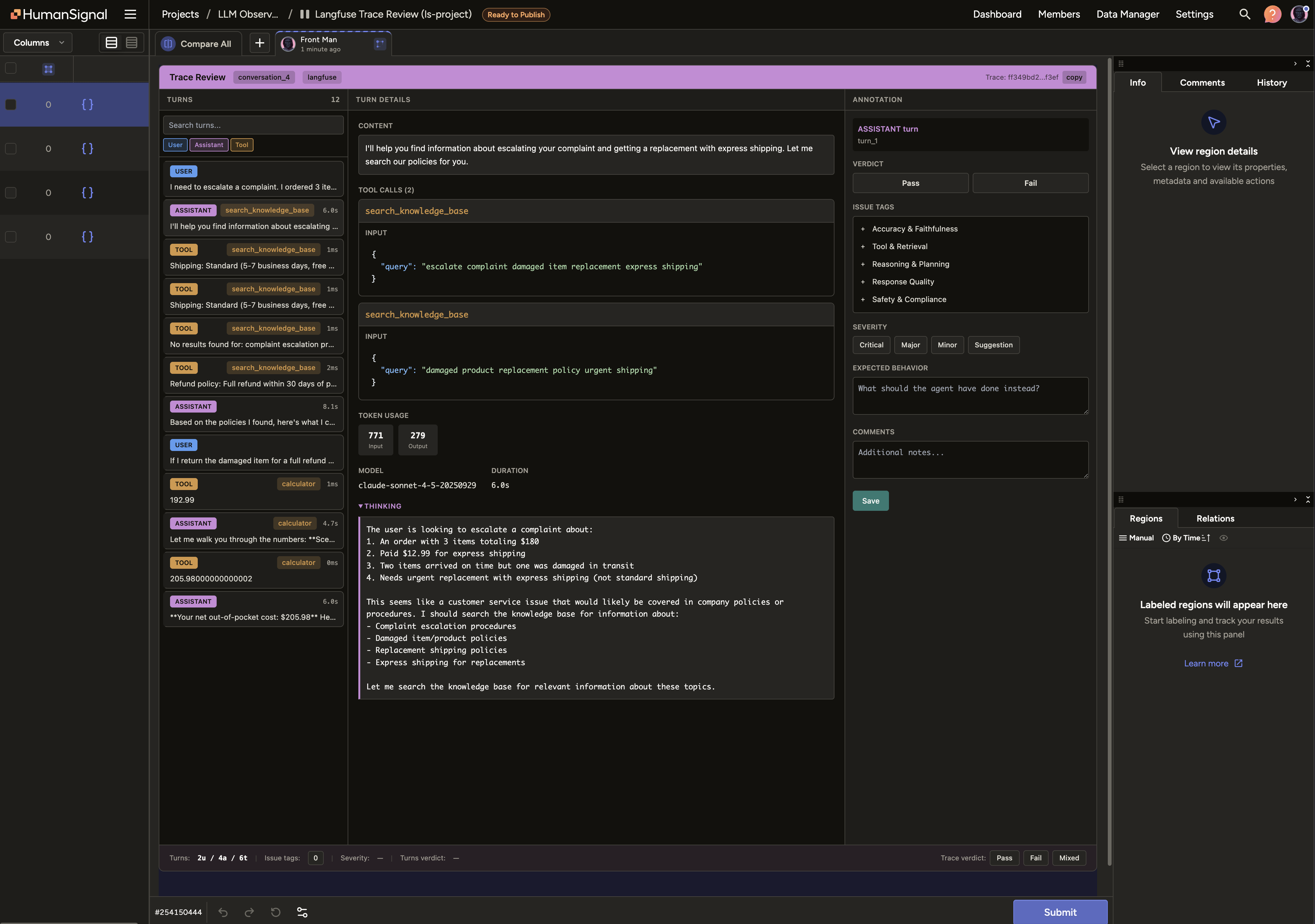

The UI has three panels:

Panel	Purpose
Turns (left)	Scrollable list of all turns. Filter by role, search by content. Each card shows role, tool badges, latency, and verdict once annotated.
Turn Details (center)	Full content, tool call inputs/outputs, token usage, latency, and Claude’s extended thinking (when present).
Annotation (right)	Structured form for evaluating each turn — see annotation model below.

Annotation model — what you capture per turn:

• Verdict — Pass or Fail
• Issue tags — taxonomy across 5 categories: Accuracy & Faithfulness, Tool & Retrieval, Reasoning & Planning, Response Quality, Safety & Compliance
• Severity — Critical / Major / Minor / Suggestion
• Expected behavior — free text: what should the agent have done instead?
• Comments — any additional notes

A trace-level verdict (Pass / Fail / Mixed) in the bottom bar captures overall conversation quality, independent of individual turn verdicts.

# ReactCode 3-panel trace annotation config (self-contained — no external files needed)
# The full ~40KB React component is inlined as _TEMPLATE_JS (see notebook for complete code).

_TEMPLATE_JS = r"""function TraceAnnotator({ React, addRegion, regions, data }) {
  // 736-line React component defining the 3-panel trace review UI.
  // Panels: Turns list (left) | Turn details (center) | Annotation form (right)
  // Bottom bar: turn statistics + trace-level verdict (Pass / Fail / Mixed)
  // ... see notebook for the full implementation ...
}"""

LABEL_CONFIG_XML = (
    '<View>\n'
    '  <ReactCode style="height: 95vh" name="trace" toName="trace"'
    ' outputs=\'{"trace_id":"string","turn_id":"string","turn_role":"string",'
    '"verdict":"string","failure_modes":"array","severity":"string",'
    '"expected_behavior":"string","comments":"string"}\'>\n'
    '    <![CDATA[\n    '
) + _TEMPLATE_JS + (
    '\n    ]]>\n'
    '  </ReactCode>\n'
    '</View>'
)
print(LABEL_CONFIG_XML[:300] + '\n...')

3. Generate Sample Traces (Optional)

If you already have traces in Langfuse, skip this section — set GENERATE_TRACES = False and go directly to Section 4.

Otherwise, this cell creates a ReAct agent with multiple tools and runs 4 multi-turn conversations using Claude with extended thinking to produce realistic traces in your Langfuse project. Requires ANTHROPIC_API_KEY.

Extended thinking lets Claude reason through complex, ambiguous problems step-by-step before responding. The thinking content is captured in the trace and visible in the Label Studio UI.

GENERATE_TRACES = True  # Set to False if you already have traces in Langfuse

if GENERATE_TRACES:
    from langchain_core.tools import tool
    from langchain_core.messages import HumanMessage
    from langchain_anthropic import ChatAnthropic
    from langchain.agents import create_agent
    from langfuse.langchain import CallbackHandler
    from langfuse import get_client

    if not ANTHROPIC_API_KEY:
        raise RuntimeError('ANTHROPIC_API_KEY is required. Set it in your .env or set GENERATE_TRACES=False.')

    langfuse = get_client()

    @tool
    def calculator(expression: str) -> str:
        """Evaluate a math expression."""
        try:
            return str(eval(expression))
        except Exception as e:
            return f"Error: {e}"

    @tool
    def search_knowledge_base(query: str) -> str:
        """Search an internal knowledge base for company policies, products, or procedures."""
        kb = {
            "refund": "Refund policy: Full refund within 30 days. After 30 days, store credit only. Damaged items: full refund at any time with photo evidence.",
            "shipping": "Standard (5-7 days, free over $50), Express (2-3 days, $12.99), Overnight ($24.99).",
            "warranty": "1-year limited warranty. 2-year extended warranty available for $29.99.",
            "pricing": "Base $99/mo (10 users), Pro $249/mo (50 users), Enterprise custom. Annual billing saves 20%.",
        }
        results = [v for k, v in kb.items() if k in query.lower()]
        return results[0] if results else f"No results found for: {query}"

    @tool
    def get_weather(city: str) -> str:
        """Get current weather for a city."""
        weather_data = {
            "new york": "New York: 72°F, Partly Cloudy, Humidity 65%, Wind 8 mph SW",
            "london": "London: 58°F, Overcast, Humidity 80%, Wind 12 mph W",
            "tokyo": "Tokyo: 82°F, Clear, Humidity 55%, Wind 5 mph NE",
            "paris": "Paris: 63°F, Light Rain, Humidity 75%, Wind 10 mph NW",
        }
        return weather_data.get(city.lower(), f"Weather data not available for {city}")

    # Claude with extended thinking — produces richer traces that surface the model's reasoning
    llm = ChatAnthropic(
        model='claude-sonnet-4-5-20250929',
        max_tokens=16000,
        thinking={'type': 'enabled', 'budget_tokens': 5000},
    )
    agent = create_agent(llm, [calculator, search_knowledge_base, get_weather])

    # 4 multi-turn conversations designed to elicit extended thinking
    conversations = [
        ["I bought a product 37 days ago with a manufacturing defect and an extended warranty. What are all my options?",
         "The item costs $289. Can I use store credit toward a new extended warranty while keeping the original warranty claim open?"],
        ["We have 60 employees — 40 need full access, 20 need read-only. How do we minimize cost?",
         "If we commit to annual billing and add 15 more full-access users next quarter, what's our 12-month total?"],
        ["I'm planning a 20-person client retreat. Compare Tokyo, London, and New York on weather and logistics.",
         "12 attendees are in New York, 8 in London. Re-evaluate the three options for minimal travel disruption."],
        ["I ordered 3 items for $180 with express shipping. One arrived damaged — I need a replacement urgently.",
         "If I return the damaged item and pay for express shipping on the replacement, what's my net out-of-pocket?"],
    ]

    # Langfuse instruments each conversation via a CallbackHandler passed to the agent
    for i, conv_messages in enumerate(conversations, 1):
        print(f"\n--- Conversation {i} ---")
        handler = CallbackHandler()
        chat_history = []
        for msg_text in conv_messages:
            print(f"  User: {msg_text[:80]}...")
            chat_history.append(HumanMessage(content=msg_text))
            result = agent.invoke({'messages': chat_history}, config={'callbacks': [handler]})
            chat_history = result['messages']
            reply = result['messages'][-1].content
            if isinstance(reply, list):
                reply = ' '.join(b.get('text', '') for b in reply if isinstance(b, dict) and b.get('type') == 'text')
            print(f"  Assistant: {str(reply)[:100]}...")
        langfuse.flush()

    print(f'\n✓ Generated {len(conversations)} traces. Proceed to Section 4.')
else:
    print('Skipped trace generation. Proceed to Section 4.')

4. Langfuse API Client

Fetches traces and observations from the Langfuse REST API. Your API keys are already scoped to a specific Langfuse project, so all traces returned belong to that project.

import base64
from typing import Any, Dict, List, Optional
import requests


def _basic_auth(public_key: str, secret_key: str) -> str:
    token = base64.b64encode(f'{public_key}:{secret_key}'.encode('utf-8')).decode('utf-8')
    return f'Basic {token}'


class LangfuseClient:
    def __init__(self, base_url: str, public_key: str, secret_key: str):
        self.base_url = base_url.rstrip('/')
        self.s = requests.Session()
        self.s.headers.update({
            'Authorization': _basic_auth(public_key, secret_key),
            'Content-Type': 'application/json'
        })

    def list_traces(self, limit: int = 20, page: int = 1,
                    from_ts: Optional[str] = None, to_ts: Optional[str] = None) -> Dict[str, Any]:
        url = f'{self.base_url}/api/public/traces'
        params: Dict[str, Any] = {'limit': limit, 'page': page, 'fields': 'core'}
        if from_ts: params['fromTimestamp'] = from_ts
        if to_ts: params['toTimestamp'] = to_ts
        r = self.s.get(url, params=params, timeout=60)
        r.raise_for_status()
        return r.json()

    def get_trace(self, trace_id: str) -> Dict[str, Any]:
        r = self.s.get(f'{self.base_url}/api/public/traces/{trace_id}', timeout=60)
        r.raise_for_status()
        return r.json()

    def list_observations_v2(self, trace_id: str, limit: int = 200) -> List[Dict[str, Any]]:
        """Fetch observations for a trace via v1 API (avoids v2 parseIoAsJson 400)."""
        url = f'{self.base_url}/api/public/observations'
        out: List[Dict[str, Any]] = []
        page, page_size = 1, min(max(limit, 1), 100)
        while True:
            r = self.s.get(url, params={'traceId': trace_id, 'page': page, 'limit': page_size}, timeout=60)
            r.raise_for_status()
            data = r.json().get('data') or []
            out.extend(data)
            if len(data) < page_size: break
            page += 1
        return out


lf = LangfuseClient(LANGFUSE_BASE_URL, LANGFUSE_PUBLIC_KEY, LANGFUSE_SECRET_KEY)
print('Langfuse client ready')

5. Normalize Langfuse Traces → Unified Schema

Langfuse stores traces as typed observations (GENERATION, TOOL, SPAN, CHAIN). This cell extracts the relevant observation types and maps them into a flat sequence of turns — the same schema used by all three platform integrations — so the ReactCode UI doesn’t need to know which platform the trace came from.

Each turn carries: role, content, tool_name, tool_input, tool_calls, model, usage (token counts), duration_ms, and thinking (Claude extended thinking blocks, when present).

import json as _json


def _to_str(x):
    if x is None: return ''
    if isinstance(x, str): return x
    try: return _json.dumps(x, indent=2, default=str)
    except: return str(x)


def _extract_content(obj):
    if obj is None: return ''
    if isinstance(obj, str): return obj
    if isinstance(obj, dict):
        for key in ('content', 'text', 'input', 'output', 'result'):
            if isinstance(obj.get(key), str) and obj[key].strip():
                return obj[key]
        return _to_str(obj)
    if isinstance(obj, list):
        parts = [_extract_content(item) for item in obj if _extract_content(item).strip()]
        return '\n'.join(parts) if parts else _to_str(obj)
    return str(obj)


def _normalize_usage(obs):
    """Extract token usage from a Langfuse observation."""
    raw = obs.get('usageDetails') or obs.get('usage')
    if not isinstance(raw, dict): return None
    return {
        'input_tokens': raw.get('inputTokens') or raw.get('input_tokens') or raw.get('input') or 0,
        'output_tokens': raw.get('outputTokens') or raw.get('output_tokens') or raw.get('output') or 0,
    }


def _duration_ms(start_str, end_str):
    if not start_str or not end_str: return None
    try:
        from datetime import datetime
        def _parse(s): return datetime.fromisoformat(str(s).replace('Z', '+00:00'))
        return int((_parse(end_str) - _parse(start_str)).total_seconds() * 1000)
    except: return None


def _split_thinking(content):
    """Split Anthropic extended-thinking content blocks into (text, thinking)."""
    if isinstance(content, str): return content, None
    if isinstance(content, list):
        text_parts, thinking_parts = [], []
        for block in content:
            if isinstance(block, dict):
                if block.get('type') == 'thinking': thinking_parts.append(block.get('thinking', ''))
                elif block.get('type') == 'text': text_parts.append(block.get('text', ''))
            elif isinstance(block, str): text_parts.append(block)
        return '\n\n'.join(text_parts), '\n\n'.join(thinking_parts) or None
    return str(content) if content else '', None


def normalize_langfuse_trace(trace, observations):
    """Convert a Langfuse trace + observations into the unified schema.

    Observation types:
      - GENERATION → extract user messages from input + assistant response from output
      - TOOL       → extract tool execution as a tool turn
      - CHAIN, SPAN, AGENT → skip (structural wrappers)
    """
    trace_id = trace.get('id') or trace.get('traceId')
    obs_sorted = sorted(observations, key=lambda o: o.get('startTime') or o.get('createdAt') or '')
    turns = []
    turn_counter = 0
    seen_user_messages = set()

    def add_turn(role, content, **kwargs):
        nonlocal turn_counter
        if not content or not content.strip(): return
        turn = {'turn_id': f'turn_{turn_counter}', 'role': role, 'content': content.strip(),
                'timestamp': kwargs.get('timestamp', '')}
        for k in ('model', 'usage', 'tool_calls', 'tool_name', 'tool_input', 'duration_ms', 'thinking'):
            if kwargs.get(k) is not None: turn[k] = kwargs[k]
        turns.append(turn)
        turn_counter += 1

    for obs in obs_sorted:
        otype = (obs.get('type') or '').upper()
        ts = obs.get('startTime') or obs.get('createdAt') or ''
        duration = _duration_ms(obs.get('startTime') or obs.get('createdAt'), obs.get('endTime'))
        inp, out = obs.get('input'), obs.get('output')

        if otype == 'GENERATION':
            if isinstance(inp, list):
                for msg in inp:
                    if isinstance(msg, dict) and msg.get('role') == 'user':
                        content = msg.get('content', '')
                        if isinstance(content, list):
                            content = ' '.join(p.get('text', '') if isinstance(p, dict) else str(p) for p in content)
                        if content and content.strip():
                            msg_key = content[:200]
                            if msg_key not in seen_user_messages:
                                seen_user_messages.add(msg_key)
                                add_turn('user', content, timestamp=ts)

            if isinstance(out, dict):
                raw_content = out.get('content', '')
                tool_calls = []
                for tc in out.get('tool_calls', []):
                    if isinstance(tc, dict):
                        tool_calls.append({'tool_name': tc.get('name', 'unknown'),
                                           'input': _to_str(tc.get('args', tc.get('input', ''))),
                                           'call_id': tc.get('id', '')})

                assistant_content, thinking = _split_thinking(raw_content)
                if assistant_content and assistant_content.strip():
                    add_turn('assistant', assistant_content, timestamp=ts,
                             model=obs.get('model') or obs.get('providedModelName'),
                             usage=_normalize_usage(obs),
                             tool_calls=tool_calls if tool_calls else None,
                             duration_ms=duration, thinking=thinking)

        elif otype == 'TOOL':
            tool_name = obs.get('name') or 'unknown'
            tool_output = _extract_content(out) if out else ''
            if tool_output:
                add_turn('tool', tool_output, timestamp=ts, tool_name=tool_name,
                         tool_input=_to_str(inp) if inp else '', duration_ms=duration)

    if not turns:
        if trace_input := _extract_content(trace.get('input')):
            add_turn('user', trace_input, timestamp=trace.get('timestamp') or '')
        if trace_output := _extract_content(trace.get('output')):
            add_turn('assistant', trace_output, timestamp=trace.get('timestamp') or '')

    return {
        'trace_id': str(trace_id),
        'session_id': str(trace.get('sessionId') or trace_id),
        'metadata': {
            'name': trace.get('name'),
            'source': 'langfuse',
            'tags': trace.get('tags') or [],
            'start_time': trace.get('timestamp') or trace.get('createdAt') or '',
        },
        'turns': turns,
    }


print('✓ Normalization functions defined')

6. Fetch, Normalize, and Import into Label Studio

Fetches traces from Langfuse, normalizes them, creates a Label Studio project with the ReactCode config, and imports the tasks.

from label_studio_sdk import LabelStudio
from label_studio_sdk.core.request_options import RequestOptions
from typing import Any, Dict, List

_REQUEST_OPTS = RequestOptions(timeout_in_seconds=120)


def create_project(ls_host: str, api_key: str, title: str, label_config: str) -> int:
    client = LabelStudio(base_url=ls_host, api_key=api_key)
    project = client.projects.create(title=title, label_config=label_config, request_options=_REQUEST_OPTS)
    return int(project.id)


def import_tasks(ls_host: str, api_key: str, project_id: int, tasks: List[Dict[str, Any]]) -> Any:
    client = LabelStudio(base_url=ls_host, api_key=api_key)
    return client.projects.import_tasks(id=project_id, request=tasks, return_task_ids=True)


if not LABEL_STUDIO_API_KEY:
    raise RuntimeError('Missing LABEL_STUDIO_API_KEY — set it in your .env file.')

# 1) Fetch traces from Langfuse
traces_payload = lf.list_traces(limit=20, page=1)
traces_list = traces_payload.get('data') or traces_payload.get('traces') or []

if not traces_list:
    raise RuntimeError('No traces returned. Run Section 3 to generate sample traces.')

print(f'Fetched {len(traces_list)} traces from Langfuse')

# 2) Normalize each trace
tasks: List[Dict[str, Any]] = []
for t in traces_list:
    tid = t.get('id') or t.get('traceId')
    if not tid:
        continue
    full_trace = lf.get_trace(str(tid))
    obs = lf.list_observations_v2(str(tid))
    normalized = normalize_langfuse_trace(full_trace, obs)
    if normalized['turns']:
        tasks.append({'data': normalized})
        print(f"  + Trace {tid[:12]}... -> {len(normalized['turns'])} turns "
              f"({sum(1 for t in normalized['turns'] if t['role']=='user')} user, "
              f"{sum(1 for t in normalized['turns'] if t['role']=='assistant')} assistant, "
              f"{sum(1 for t in normalized['turns'] if t['role']=='tool')} tool)")

print(f'\nPrepared {len(tasks)} tasks for import')

# 3) Create project and import
project_id = create_project(
    ls_host=LABEL_STUDIO_HOST,
    api_key=LABEL_STUDIO_API_KEY,
    title=f'Langfuse Trace Review ({LANGFUSE_PROJECT})',
    label_config=LABEL_CONFIG_XML,
)
print(f'Created project: {project_id}')

resp = import_tasks(LABEL_STUDIO_HOST, LABEL_STUDIO_API_KEY, project_id, tasks)
print(f'Imported {len(tasks)} tasks')
print(f'\nDone! Open your project: {LABEL_STUDIO_HOST.rstrip("/")}/projects/{project_id}')

What’s Next

• Start annotating: Open the project link above and click through traces in the ReactCode UI
• Share with SMEs: Invite domain experts to your Label Studio project for collaborative evaluation
• Incremental sync: Re-run sections 4–6 periodically to pull new traces
• Export annotations: Use the Label Studio SDK or REST API to pull structured annotations for downstream analysis or fine-tuning
• Custom taxonomy: Edit the _TEMPLATE_JS variable in the label config cell to add failure modes specific to your domain
• Braintrust / LangSmith: See companion tutorials for other observability platforms

Summary

This tutorial demonstrated the complete workflow from Langfuse traces to expert evaluation:

1. ✓ Set up environment with Langfuse and Label Studio Enterprise
2. ✓ Defined a ReactCode-based 3-panel annotation UI (Enterprise feature)
3. ✓ Ran a multi-tool ReAct agent with Claude extended thinking — Langfuse captured traces via CallbackHandler
4. ✓ Fetched traces from Langfuse using the REST API with Basic Auth
5. ✓ Normalized typed observations (GENERATION, TOOL) into a unified trace schema
6. ✓ Created a Label Studio project and imported traces as annotation tasks

Key Takeaway

Langfuse excels at typed observation storage and project-scoped API access during development. Label Studio Enterprise provides the collaborative, expert-driven evaluation framework — with the ReactCode interface giving domain experts an intuitive turn-by-turn review experience. The two tools complement each other throughout the AI development lifecycle.

References

• Langfuse
• Label Studio
• Label Studio ReactCode Templates
• Label Studio SDK
• Companion tutorials: Braintrust | LangSmith
