VectorLabels

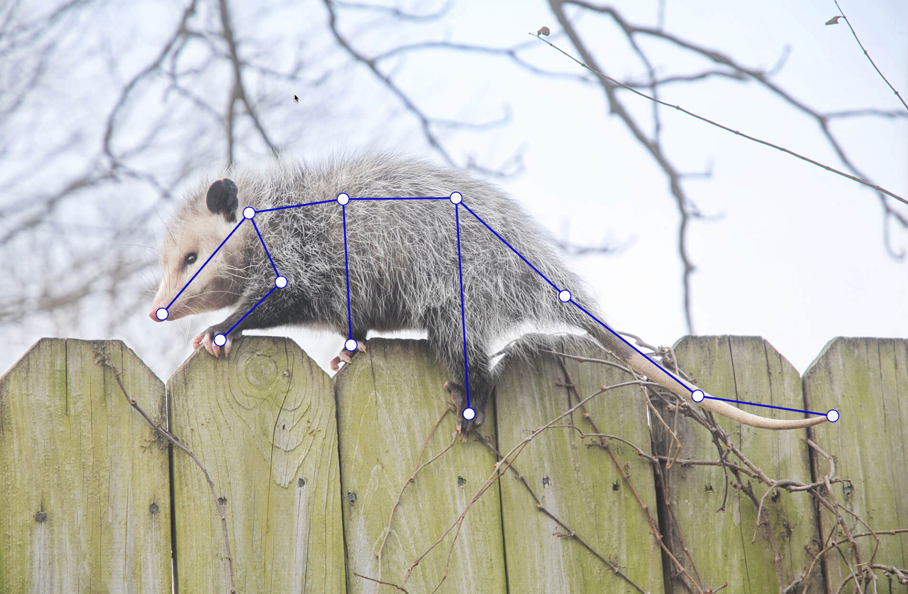

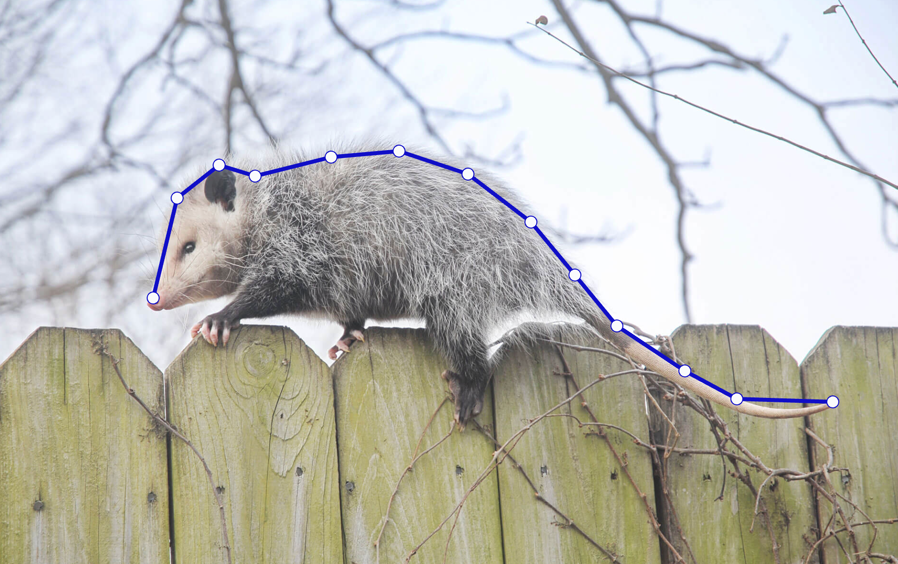

The VectorLabels tag is used to create labeled vectors. Use to apply labels to vectors in semantic segmentation tasks.

Use with the following data types: image.

Parameters

Param	Type	Default	Description
name	string		Name of tag
toName	string		Name of image to label
[choice]	single | multiple	single	Configure whether you can select one or multiple labels
[maxUsages]	number		Maximum number of times a label can be used per task
[showInline]	boolean	true	Show labels in the same visual line
[opacity]	number	0.2	Opacity of vector
[fillColor]	string		Vector fill color in hexadecimal
[strokeColor]	string		Stroke color in hexadecimal
[strokeWidth]	number	1	Width of stroke
[pointSize]	small | medium | large	medium	Size of vector handle points
[pointStyle]	rectangle | circle	rectangle	Style of points
[snap]	pixel | none	none	Snap vector to image pixels

Result parameters

Kind: global typedef
Returns: VectorRegionResult - The serialized vector region data in Label Studio format
Properties

Name	Type	Description
original_width	number	width of the original image (px)
original_height	number	height of the original image (px)
image_rotation	number	rotation degree of the image (deg)
value	Object

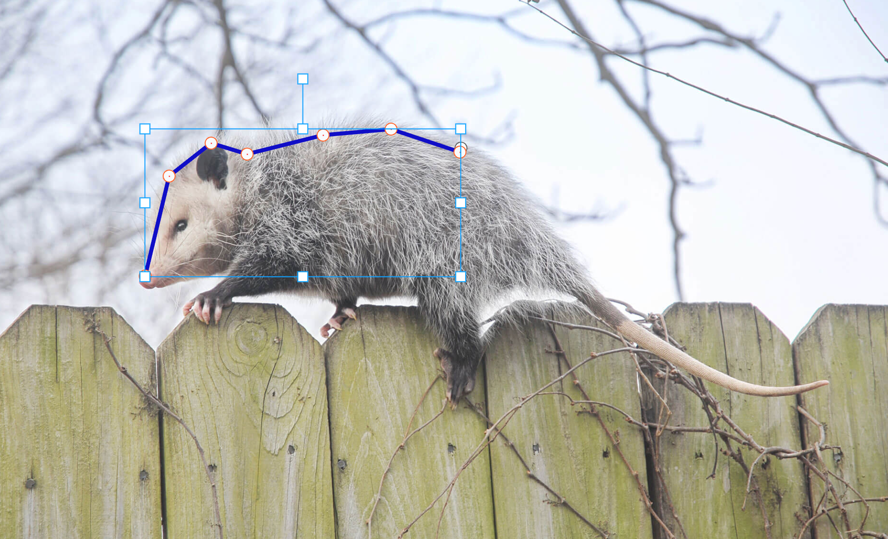

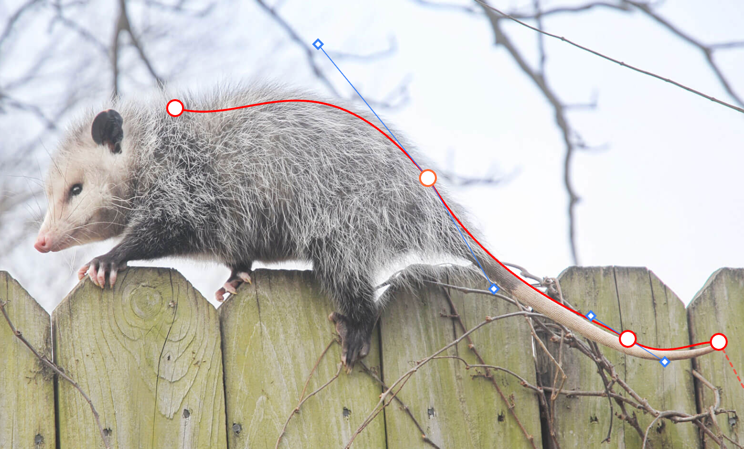

value.vertices	Array.<Object>	array of point objects with coordinates, bezier curve information, and point relationships

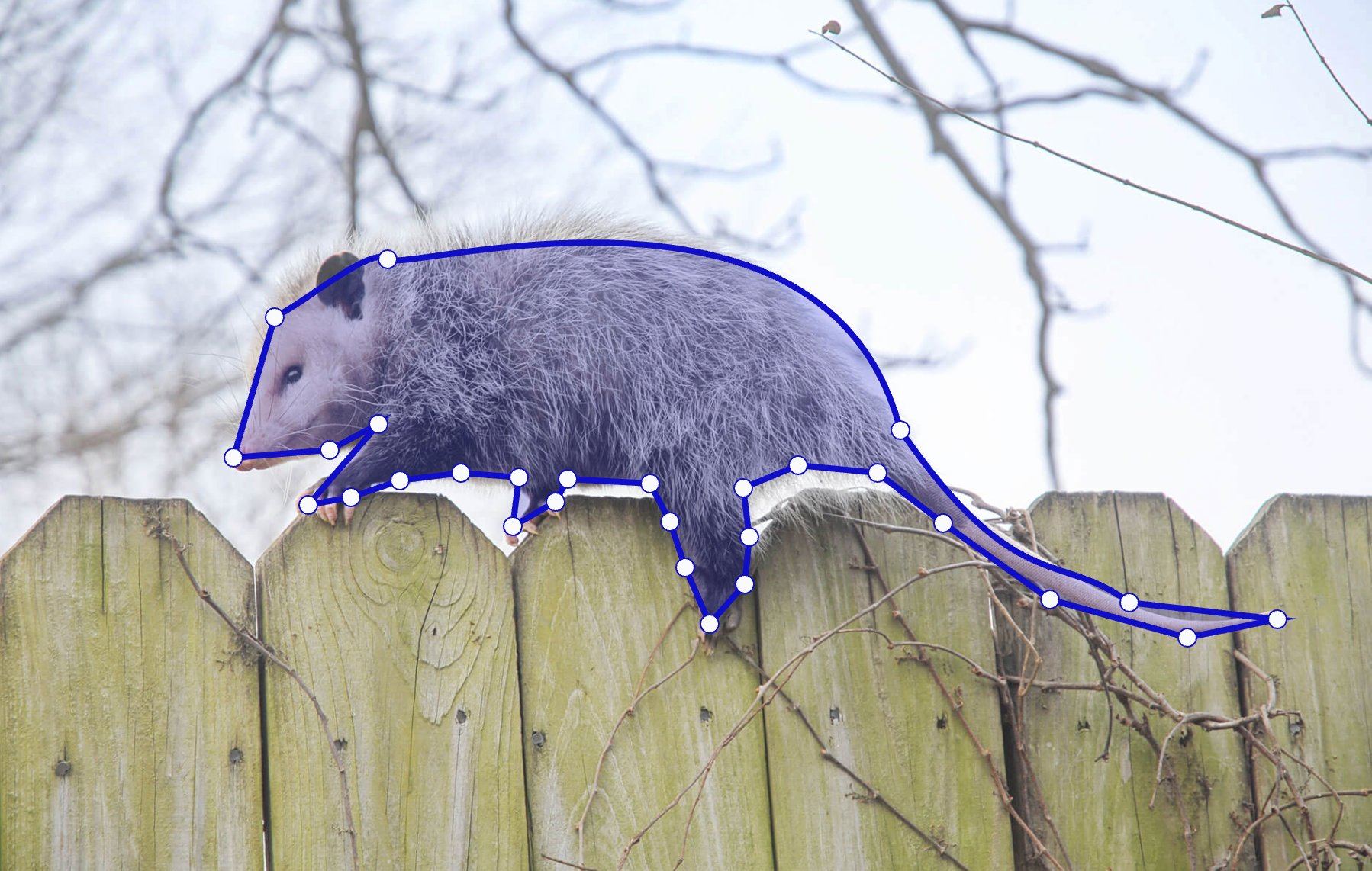

value.closed	boolean	whether the vector is closed (polygon) or open (polyline)
value.vectorlabels	Array.<string>	array of label names assigned to this vector

Example JSON

{
  "original_width": 1920,
  "original_height": 1280,
  "image_rotation": 0,
  "value": {
    "vertices": [
      { "id": "point-1", "x": 25.0, "y": 30.0, "prevPointId": null, "isBezier": false },
      { "id": "point-2", "x": 75.0, "y": 70.0, "prevPointId": "point-1", "isBezier": true,
        "controlPoint1": {"x": 50.0, "y": 40.0}, "controlPoint2": {"x": 60.0, "y": 60.0} }
    ],
    "closed": false,
    "vectorlabels": ["Road"]
  }
}

Example

Basic labeling configuration for vector semantic segmentation of images

<View>
    <Image name="image" value="$image" />
    <VectorLabels name="labels" toName="image">
        <label value="Road" /> <label value="Boundary" />
    </VectorLabels>
</View>
